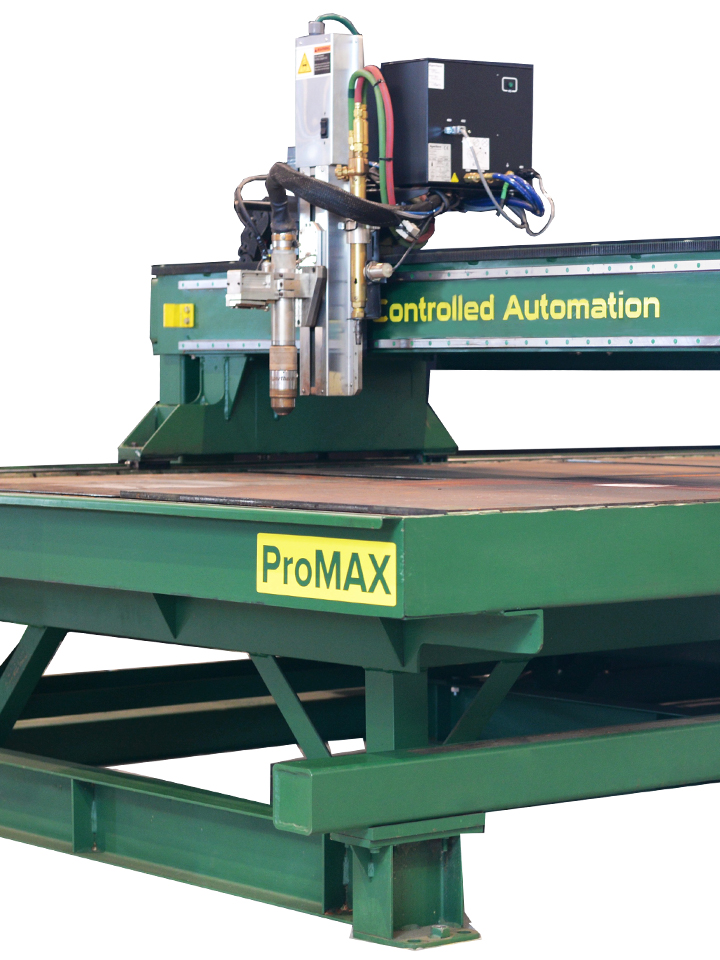

The ProMAX is our most compact unitized cutting system which offers the smallest footprint for plate cutting. What keeps this machine as the most impressive single-side drive plasma machine on the market is its incredible accuracy and Hypertherm True Hole capability and high definition plasma accuracy. We produce this machine as the heaviest single-side system on the market to last for years of heavy production. It is supplied in 6' (1.8m) or 8' (2.5m) widths and 12' (3.6m) cutting lengths. It is also an excellent secondary system for larger shops for uses such as remenat cut up and overflow work.

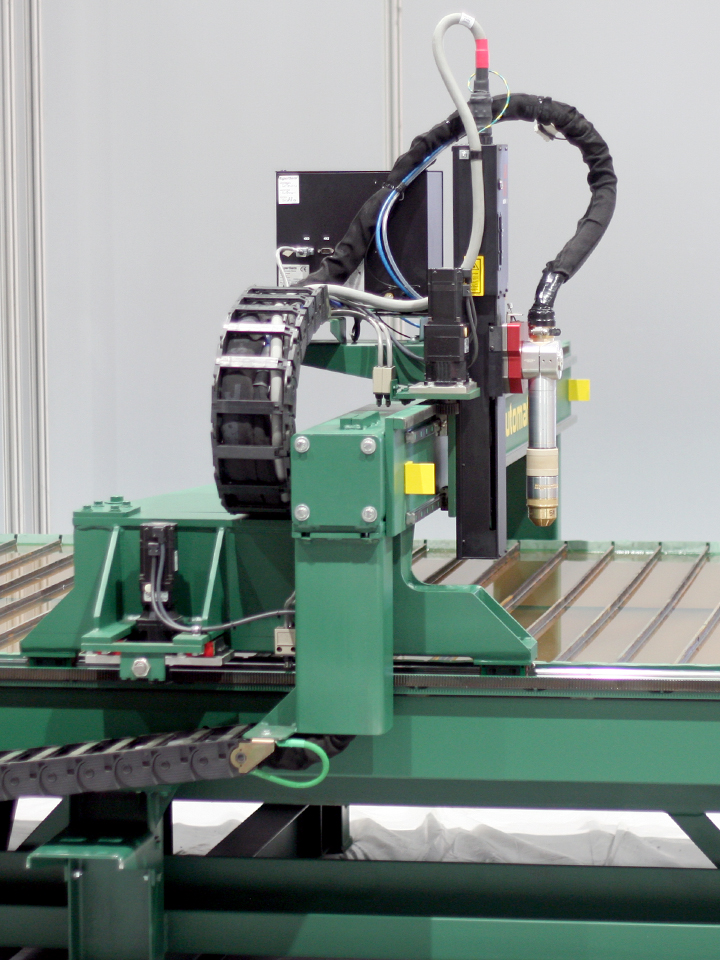

The plasma automatic gas control sets, monitors and controls gas flows and pressures close to the torch for improved process consistency. The automatic gas control provides rapid switching from one gas process to another. This is common when switching from the cutting process to the marking process.

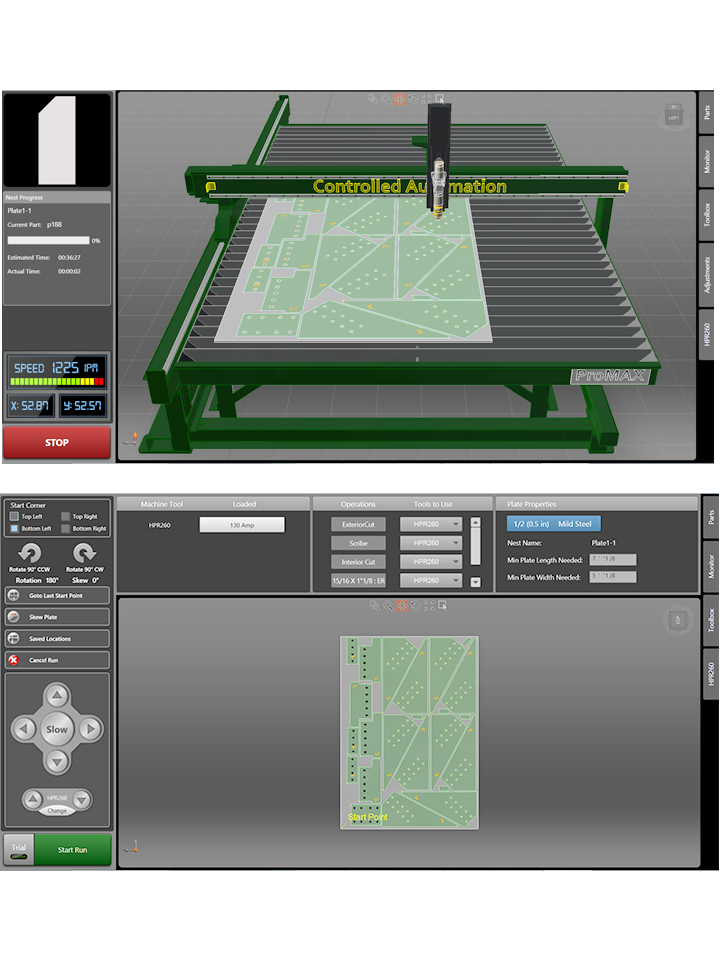

Controlled Automation offers the cutting edge (no pun intended) in advanced shape nesting software and beyond. Our SICAM software is used throughout all Controlled Automation machinery for easy navigation between machines for the operator. We also allow seamless integration with a variety of communication tools unavailable on any other cutting machine in the world. Whether you need to tie into 3D drafting models such as Design Data SDS-2 and Tekla detailing software or communicate with inventory management software such as FabTrol and FabSuite, SICAM is on board as the standard nesting program to handle the cutting edge of production.
High Definition CuttingPrecision parts are produced using Hypertherm's True Hole process as standard on our HPRxd series machines for AISC approved bolted hole connections for the structural fabricators.
Control SimplicityWe designed our controller with simplicity in mind. Your CPU contains off-the-shelf components for easy maintenance and reliability with a standard PC computer. Online diagnostics are also available for fast and easy remote help by Controlled Automation technicians.
Optional Pull-Out TraysEasy clean-up and access to your parts are a necessity for limiting your material handling time. The ProMAX system's easy access pull-out trays are available for quick clean-up whether it's a water table or dry down-draft table design.

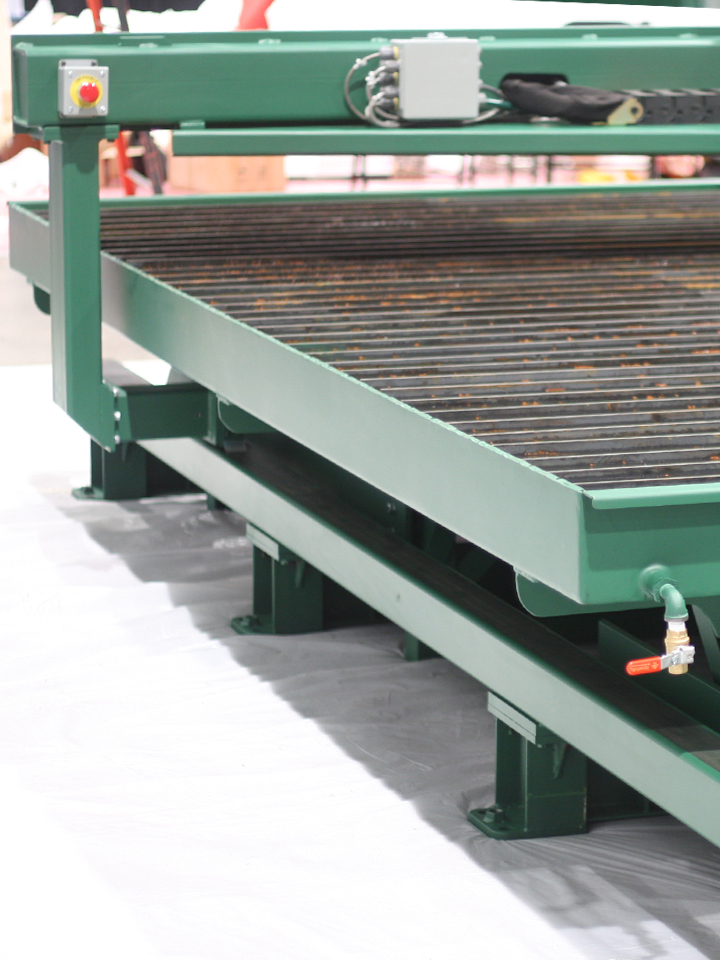

Down-Draft or Water Cutting SurfacesIntegrated zoned down-draft systems or water tables are available on all model ProMAX machines. Dross pick-out trays are are also available for easy clean out.
Safety FeaturesAll emergency stops are located around the perimeter of the machine. Controlled Automation also offers additional systems such as the Allen-Bradley Life-line E-Stop.
Superior Service & SupportAs the most trusted name in service and support - Controlled Automation leads the industry for inexpensive parts and the highest quality service that speaks more from our loyal customers than any marketing. If you own a Controlled Automation machine, you are our customer and we will support you for life.
Effective Cutting Length | 12' / 3.6m | |||
Effective Cutting Width | 6' or 8' / 1.8m or 2.5m | |||

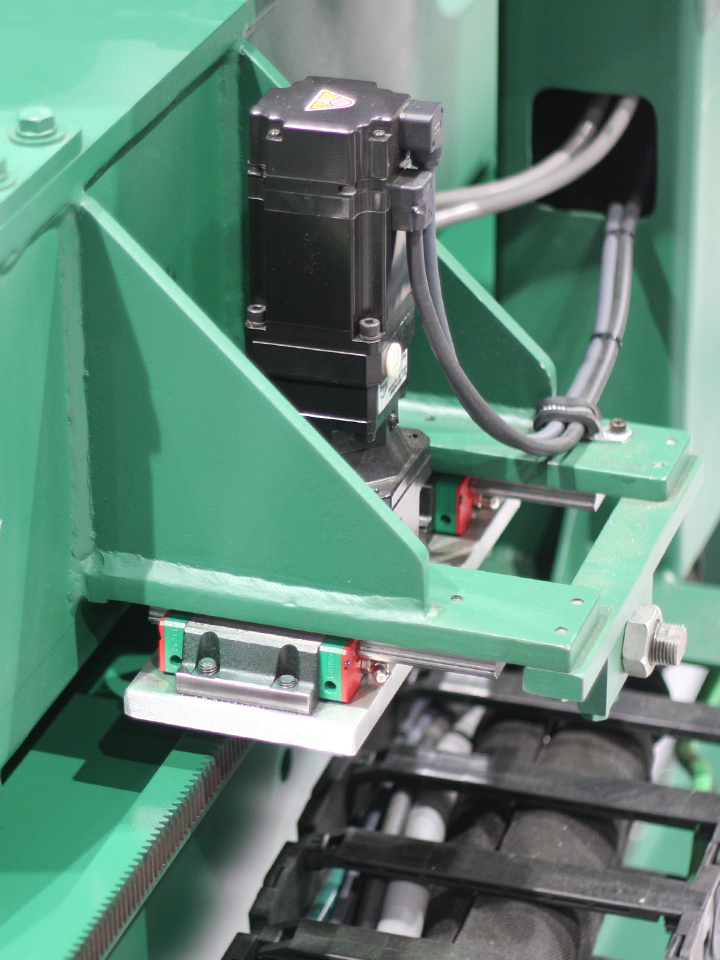

Drive Configuration | AC digital servo amplifier | |||
Machine Speeds | Rapid Traverse 1,200 IPM / 30.5 mpm | |||
Positioning Accuracy | ±.007in. | |||
Body Construction | Unitized | |||
Single Side Drive | All Models | |||
OPTIONAL CUTTING STATIONS | ||||
Optional number of Torches | Gas Control | |||
1 Oxy-Torch | Manual gas control | |||
1 Plasma station | Manual or Automatic gas control | |||
Larger Machines Available |
